Description
1. CompactLogix, 1769-L30ER with additional 16 input and output modules.
2. Power supply of 10 amp
3. Transformer, encapsulated core, 1 kVA, 1-phase, 208-380 VAC selectable,
120/240 VAC secondary, 50/60 Hz, panel mount.
4. Unmanaged ethernet switch, 8-port
5. Circuit breakers (D and C curve)
6. Keyence Safety PLC
7. Safety Relay for Air Solenoid pack (up to 6 valves)
8. FPO Exhaust Fan and filter
9. Mencom programming port
10. Beelink Computer
11. SPDT Relays
12. Disconnect switch, 600VAC, 25A, 65kA, UL 508 Rated

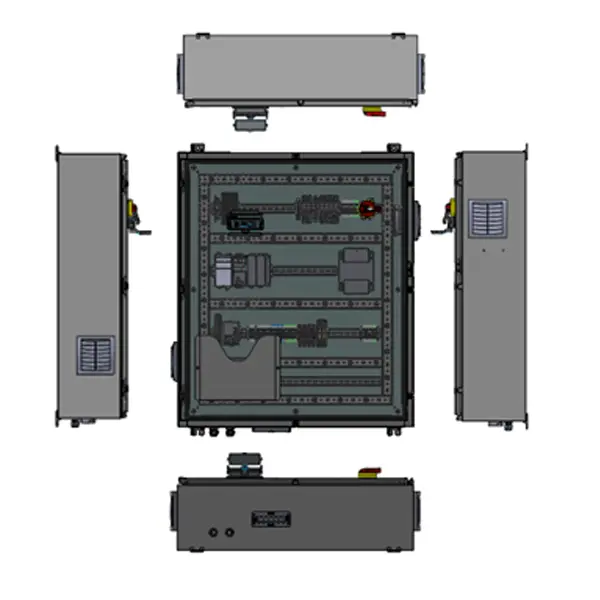

13. Size: SCE-42H3610LP with sub panel
14. Paint: Grey
Assembly: Product comes fully assembled minus plug for outlet.
25FT of main power cord.
Not Included: UL Certified will be an added cost.
Shipping Cost: Not included
